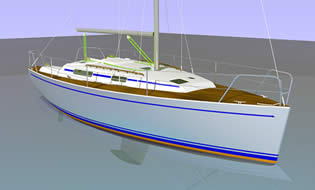

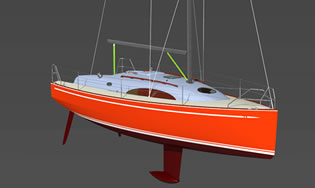

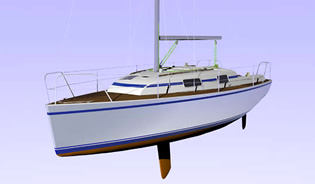

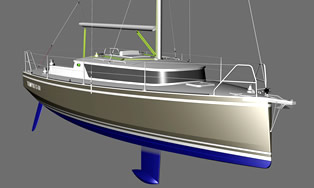

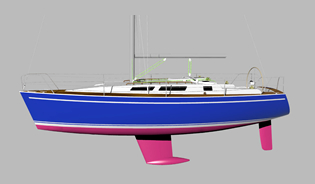

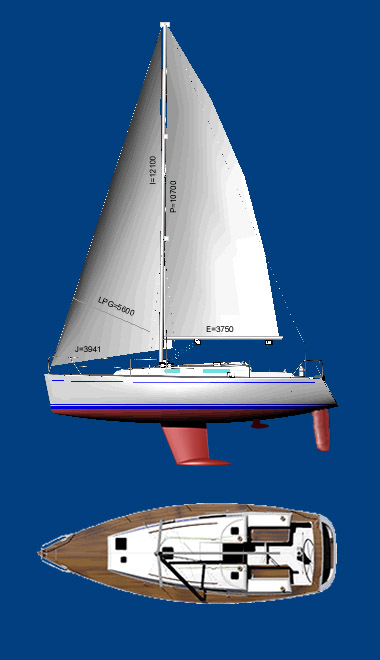

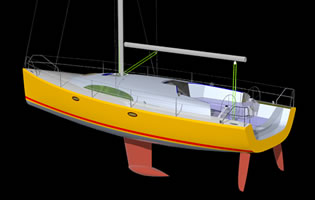

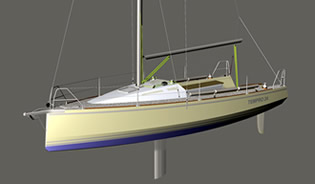

Let me introduce one sailing yacht design I developed for my friend Berejnoi Igor. He builds his yacht using one.
Ffeel free to discuss it in blog and offer your own design to place at this page. |
|
LOA = 9.90m
BOA = 3.29m
LWL = 9.17m
BWL = 2.73m
Displ.= 4.75t Draft = 1.70m
Ballast = 1.2t in the bulb
Sail area = 54.0m²
Sails: Bermuda Sloop: Mainsail S=24.0m²
Genoa S=30.0m², furling gear.
Accomodation: three separate cabins and saloon
Galley: stove with oven, refrigerator, cold-hot water, two sinks
Head: with shower, cold-hot water
Engine: volvo-Penta, 30 h.p.
Water tank: 150L
Fuel tank: 100L
Data and Coefficients
|
|
 |
| |
Wetted Area m² |
21,482 |
|
| |
Waterpl. Area m² |
17,381 |
|
| |
Prismatic Coeff. |
0,512 |
|
| |
Block Coeff. |
0,109 |
|
| |
Midship Area Coeff. |
0,218 |
|
| |
Waterpl. Area Coeff. |
0,692 |
|
| |
LCB to Amidsh. m |
0,249 Aft |
|
| |
LCF to Amidsh. m |
0,448 Aft |
|
| |
KB m |
0,257 |
|
| |
KG m |
0,433 |
|
| |
BMt m |
1,632 |
|
| |
BML m |
16,842 |
|
| |
GMt m |
1,456 |
|
| |
GML m |
16,666 |
|
| |
KMt m |
1,889 |
|
| |
KML m |
17,099 |
|
| |
TPc Tonne/cm |
0,178 |
|
| |
MTc Tonne.m |
0,088 |
|
|

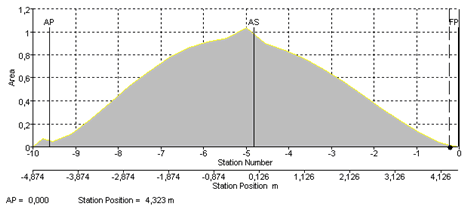

| Displacement diagram |
|

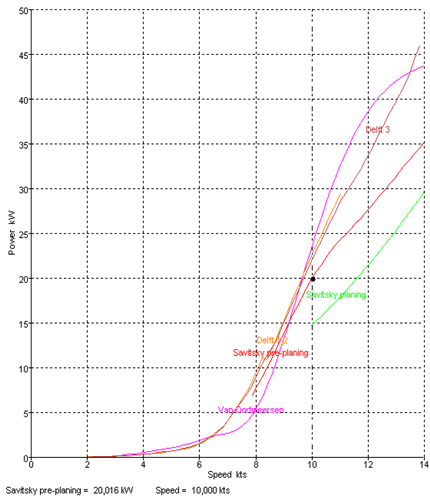

Speed/Power diagram |
 |
 |

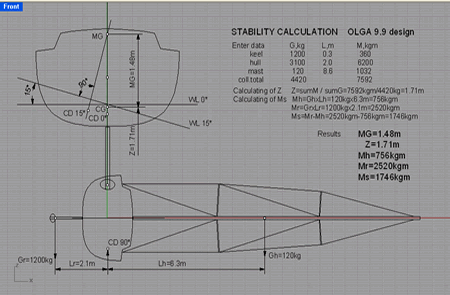

| Stability diagram |
|
 |
| Results |
|
|
| |
Rule |
Criteria |
Units |
Required |
Actual |
Status |
|
1 |
IMO |
Area 0. to 30. |
m.Degrees |
3,15 |
10,4 |
Pass |
|
4 |
IMO |
GZ at 30. or greater |
m |
0,3 |
17,149 |
Pass |
|
5 |
IMO |
Angle of GZ max |
Degrees |
20 |
6,75 |
Pass |
|
6 |
IMO |
GM |
m |
0,5 |
0,854 |
Pass |
|
7 |
U.S. Navy |
Angle of Heel |
Degrees |
20 |
60 |
Pass |
|
8 |
U.S. Navy |
Wind Heeling (Levers) - 20 knts |
m |
maxRM * 0.6 > eqRM |
maxRM = 0,854, eqRM = 0,364 |
Pass |
|
9 |
U.S. Navy |
Wind Heeling (Areas) - 20 knts |
m.Degrees |
A1 > A2 * 1.4 |
A1 = 42,63, A2 = 8,126 |
Pass |
|
10 |
U.S. Navy |
Margin Line Immersion |
|
Not Immersed |
|
Not Analysed |
|
11 |
MARPOL 73 |
Final Waterline |
|
No DownFlooding |
|
Not Analysed |
|
12 |
MARPOL 73 |
Angle of Heel |
Degrees |
25 |
0 |
Pass |
|
13 |
MARPOL 73 |
Range of Positive Stability |
Degrees |
20 |
140,35 |
Pass |
|
14 |
MARPOL 73 |
Residual Righting Lever |
m |
0,1 |
0,854 |
Pass |
|
15 |
USL |
5 Passengers of 75 kg. 1 m.from CL |
Degrees |
10 |
3,026 |
Pass |
|

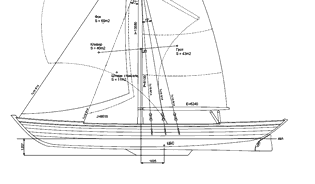

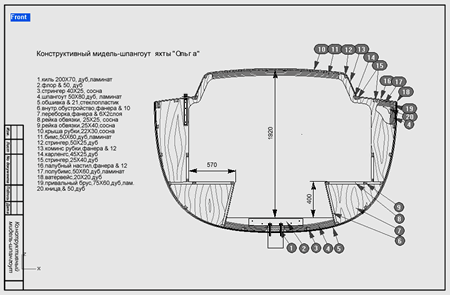

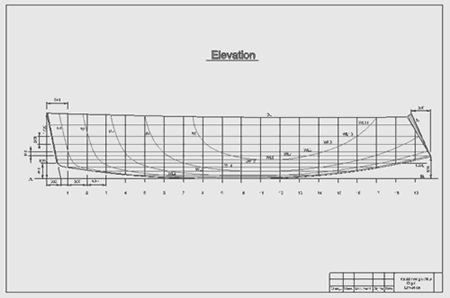

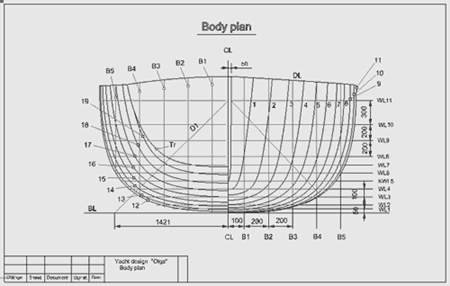

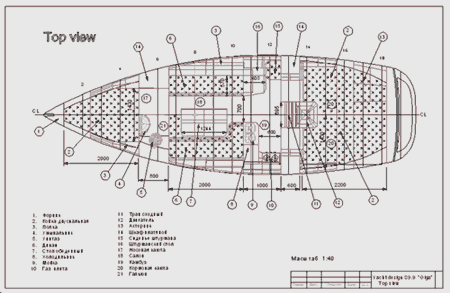

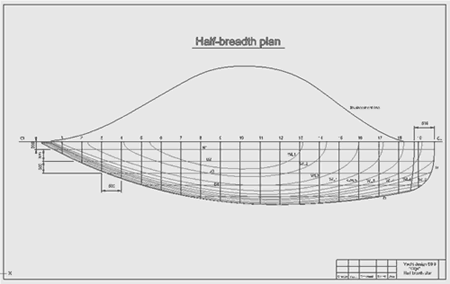

The drawings |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
 |
|
 |
|
|
